Rally lights

For this project we used our 2019 WRX. We needed more light on the front in order to see down our dark roads. Living in the desert it gets real dark with no ambient light around. Well we solved that, YES!! we know the car is dirty, it's a rally car with 5 miles of dirt driveway.

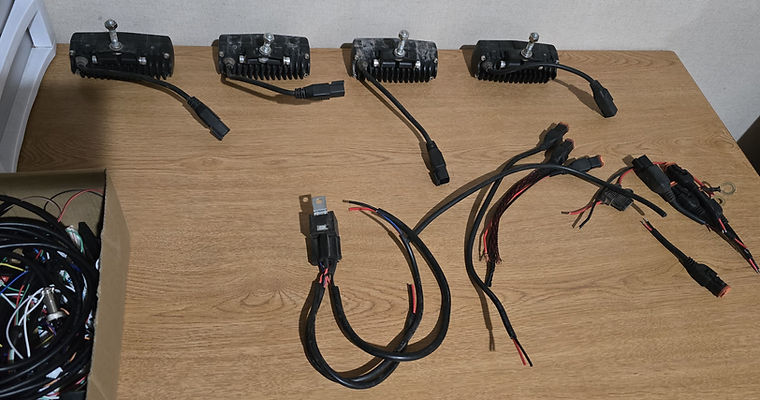

I already started wiring before I realized is should start taking pictures.

Now that the relay is wired, I used 2 pin waterproof connectors being these would be exposed to all the elements.

Here the wires had been measured for the car. Fuse is wired in

I used this black and red wire sheathing to match the black and red of the Subaru

Harness completed ready for install.

Pulled back the front of the bumper to remove the top bumper brace. This brace makes a perfect mount for the lights.

Fuse part of the harness mounted and the trigger wire temporarily connected to the high beams. I didn't want a separate switch for them. It's to much to turn off the highs and switch for the lights in respect to oncoming cars. So by doing this both highs and rally lights work off the factory stalk.

Routed harness before securing it.

Final test before securing the harness. I have these set up, the 2 center fronts point straight forwards while the 2 outer ones are angles to illuminate anything off the road.

Before and After
